Foundation Underpinning & Piering in Ottawa, Ontario

We underpin foundations to lower a basement or carry a settling house, and install helical and push piers to stabilize it. Underpinning costs $80-$500 per linear foot, with full-perimeter jobs at $30,000-$100,000+. Piers cost $1,200-$2,500 each, and most homes need 8-15. One wall takes 1-2 weeks.

Get your free quote

Tell us what you're seeing. We reply within one business day.

What can we help with?

So the right crew reviews your project.

No obligation.

  • $80-$500 per linear ft
  • Piers $1,200-$2,500 each
  • 1-2 weeks per wall
  • Free assessment

Signs Your Foundation May Need Underpinning

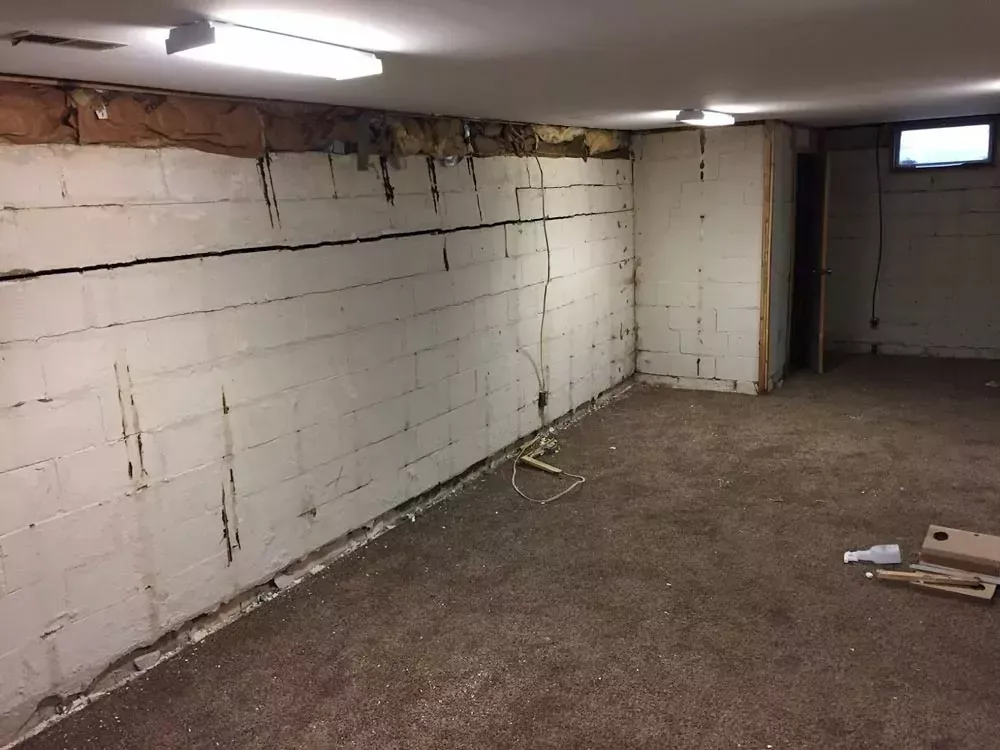

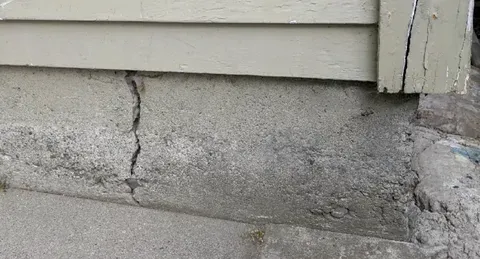

Doors and windows that have started sticking, floors with a new slope, visible gaps opening between a wall and the ceiling or floor trim, and cracks widening rather than staying stable are the most common signs that a foundation has settled enough to need underpinning rather than a surface repair. A basement that feels too low to finish comfortably is a different reason for the same work, driven by wanting more usable height rather than a structural problem. We confirm which situation applies during the on-site assessment before recommending the work.

Underpinning Cost and What Affects It

Underpinning typically runs $80 to $500 per linear foot depending mainly on target depth, with full-perimeter jobs on a larger home commonly running $30,000 to $100,000 or more. The existing footing's condition, soil type, and how many sections need to be excavated and poured in sequence all affect the final price and timeline. Because the structure has to stay supported throughout, underpinning is priced and scheduled section by section rather than as a single lump job, and your written quote breaks down the sections involved.

How Long an Underpinning Project Takes

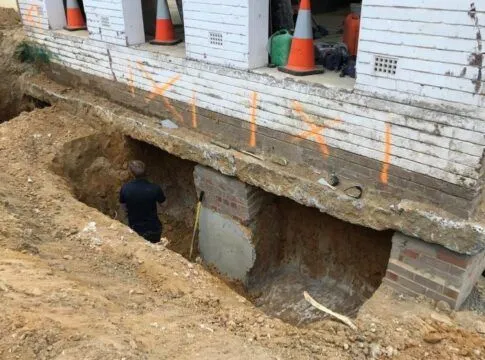

Underpinning is done in short sections, typically three to four feet at a time, so the wall above always has support while the new footing goes in below it. A single-wall or partial-perimeter job commonly takes one to two weeks; a full perimeter underpinning on a larger home can run several weeks since each section has to cure before the next one starts. We give you a specific timeline once we have surveyed the foundation and know how many sections the job needs.

Maintaining a Foundation After Underpinning

Once underpinning is complete, the new footing and piers do the structural work permanently, so there's no ongoing maintenance specific to the underpinned section itself. It's still good practice to keep an eye on grading and drainage around the property, since the same soil conditions that caused the original settlement can still affect other, non-underpinned sections of the foundation if water isn't managed properly. We'll point out during the final walkthrough whether any other section of your foundation looks like a future candidate for the same work.

Recent excavation

What We Found Under a Settling Corner in Gloucester

We excavated beside an older brick home in Gloucester after a stair-step crack opened up through the brick. Digging down along the wall showed soil missing from under the foundation, right below where the crack starts. That corner had dropped because it lost the soil supporting it. Lost support under a footing is the problem underpinning and piers are built to fix: they carry the wall down to soil that will hold it.

Foundation repair in Gloucester

Bench Footing, Full Underpinning or Piers

Faster, keeps the existing wall

Underpinning extends a foundation footing deeper, in stages, to add ceiling height or bearing capacity. Bench footing keeps the existing wall in place and builds a lower step of new footing and wall in front of it, which is faster and less expensive but reduces the usable floor width slightly.

Get a free assessment

Rebuilds the footing at the new depth

Full underpinning removes and rebuilds the footing at the new depth, holding the original wall width but taking longer and costing more. Which one makes sense depends on the depth you need and the condition of the existing wall.

Get a free assessment

Carries a settling foundation

Piers are a different tool for a different problem: rather than adding depth, they transfer the weight of a settling foundation down to stable soil or bedrock. Helical piers are screwed into the ground and are well suited to lighter structures and additions; push piers are driven hydraulically and typically carry more load. Both can be used to stabilize a settling section and, in many cases, lift it back closer to level.

Get a free assessment

Depth, settling, or both

Need More Depth: Underpinning, when the goal is a taller or legal basement ceiling height. Settling, Not Height: Piering, when a section is sinking and the goal is to stabilize and lift it. Both Together: Some jobs combine underpinning for depth with piers under the deepest or weakest section.

Get a free assessment

What underpinning includes

Your written quote breaks the job down section by section.

Included in the price

  • Included: Staged excavation in 3 to 4 ft sections so the wall stays supported
  • Included: Structural engineer's review on larger or full-perimeter jobs
  • Included: New footing and wall poured and cured before the next section starts
  • Included: A final walkthrough with notes on any other section worth watching
Our Process

How Foundation Underpinning Works

1

Call or Request an Assessment

Tell us what you're seeing and where it is on the property.

2

On-Site Assessment

We inspect the affected area, confirm the cause, and check whether it's still active.

3

Written Quote

A specific scope of work and price in writing before we schedule anything.

4

Repair & Final Walkthrough

Work is carried out to the agreed scope, then we review it with you and confirm it matches the quote.

Frequently asked questions

Straight answers to what Ottawa property owners ask before booking. Still unsure? Call us.

Call (343) 504-4610
How long does underpinning take?

A single-section job commonly takes one to two weeks; a full perimeter on a larger home can run several weeks, staged so the structure stays supported.

Is underpinning noisy or disruptive?

Yes, expect excavation noise and dust for the duration of the work, both inside and around the perimeter of the home.

How many piers does a typical house need?

Most residential jobs use 8 to 15 piers, depending on the length of wall being stabilized and the load involved.

Can piers lift my foundation back to level?

In many cases, yes, piers can recover some or most of the lost elevation, though the amount depends on how long the settling has been happening and the soil conditions underneath.

What's the difference between bench footing and full underpinning?

Bench footing lowers the floor in sections with a stepped ledge and is faster; full underpinning replaces the footing itself for uniform headroom throughout, but takes longer and costs more.

Considering Underpinning or Piering?

Get a free assessment and a written quote before you commit to either.
